Allow access to WhatsApp over Clavister
Social media has always been one of the ways to infiltrate the network, so a device like clavister does not allow access by default.in this document we want to access to whatsapp over clavister firewall
SUBJECT |
Allow access to WhatsApp over Clavister |
RELATED DEVICES |
100 Serisi (Netwall 110 and 140) |
Document Date and Revision |
4/25/2023 |
Software Version |
14 |
Hardware Version |
1 |
Description / Script / Topology |
Allow access to WhatsApp over Clavister |

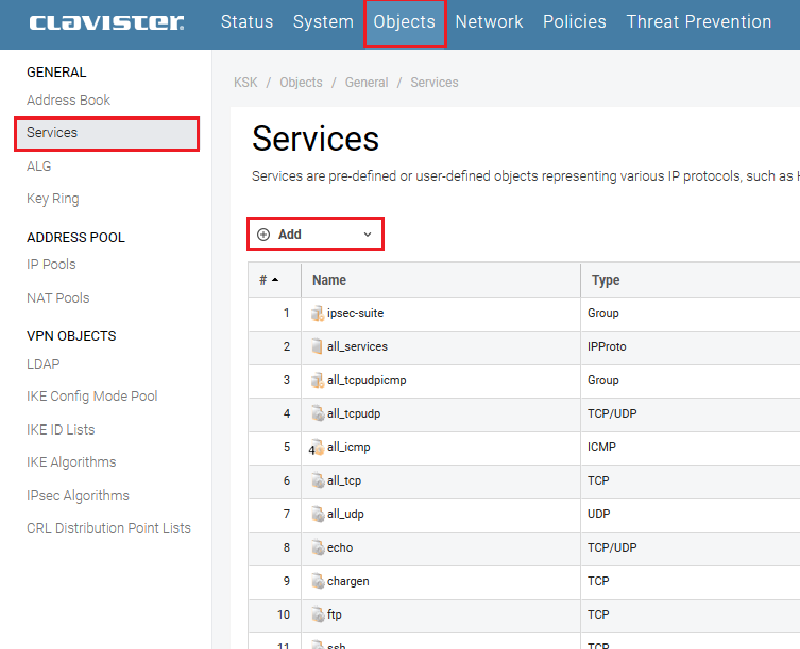

- Frist of all we should create a service include the all of whatsapp ports from this way Objects>general>service>add
whatsapp service help us to access massage and calling over clavister and for creating this service we should using some tcp and udp ports related to whatsapp servers
whatsapp ports are 4244 / 5222 / 5223 / 5228 / 5242 /3478 / 50318 / 59234

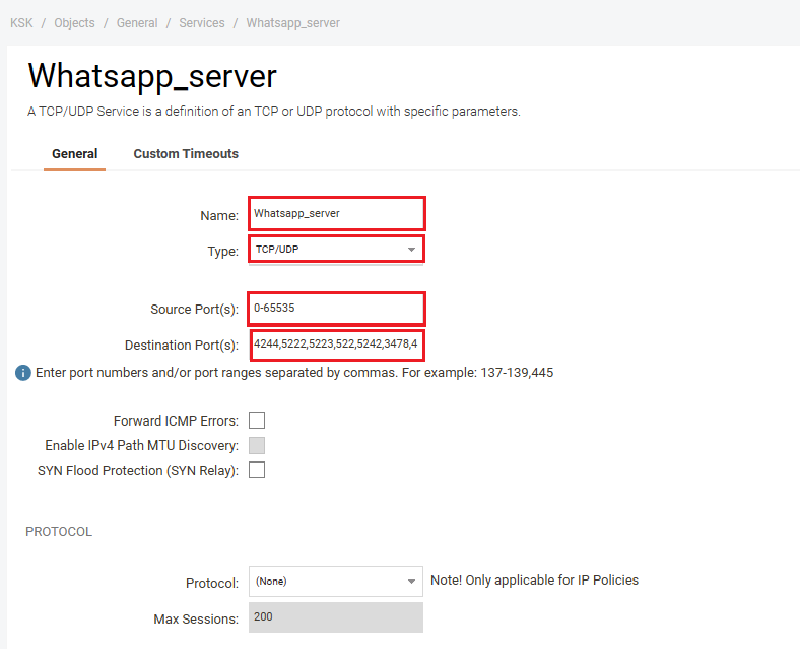

1- give a name after that choosing type of Protocols
2- on the source ports we using all of the tcp/udp ports
3- on destination ports we using whatsapp ports
After all we should create a ip rule for Access the whatsapp servers

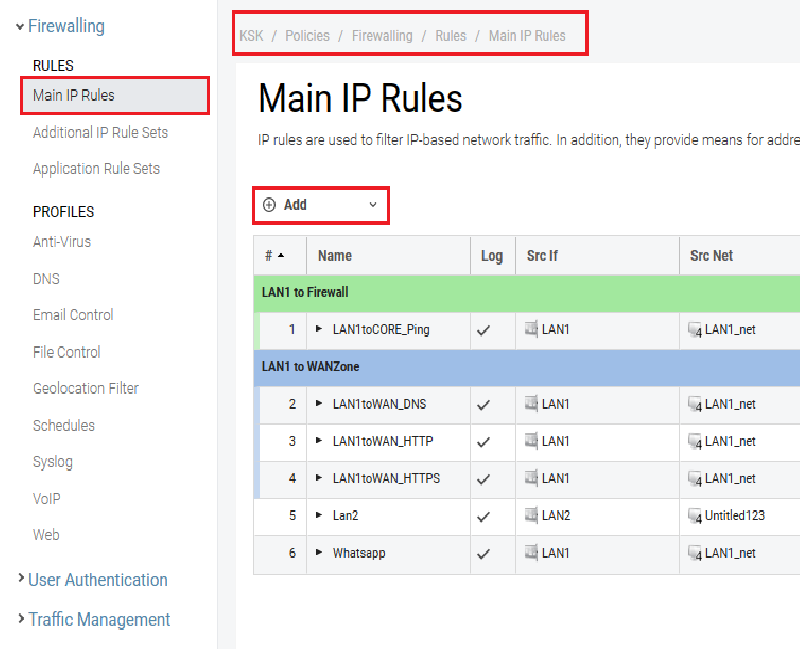

From this way : policies > firewaling > rules > main ip rule

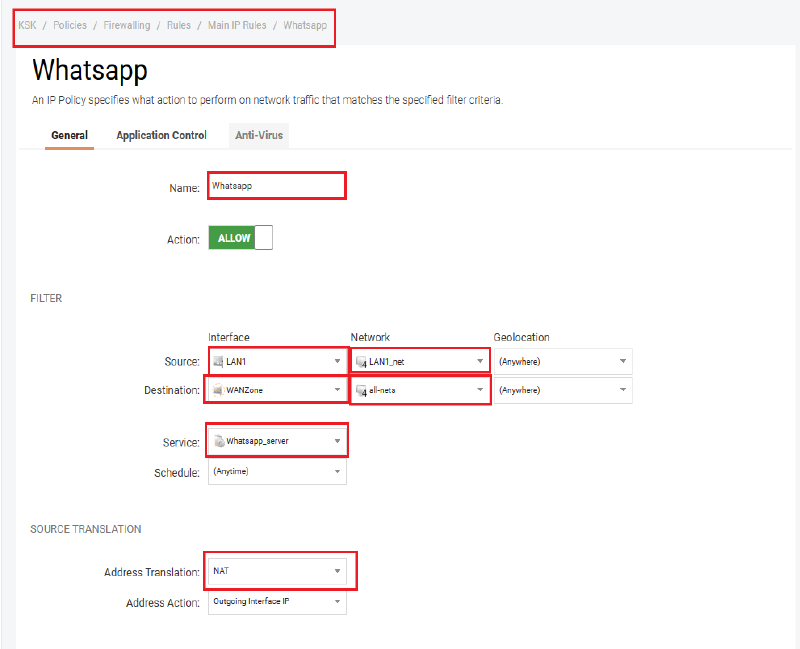

on this page we should allow to whatsapp traffic with ip policy and whatsapp service we created before
Soure interface : this is your local area interface
source Network : this is your local network
Destination interface : in this case , its on the internet site
Destination Network : can be on all net
Service : choose service we created (whatsapp_server)
Adress Translation : put on nat or auto
after this configuration you can access whatsapp service over clavister firewall
