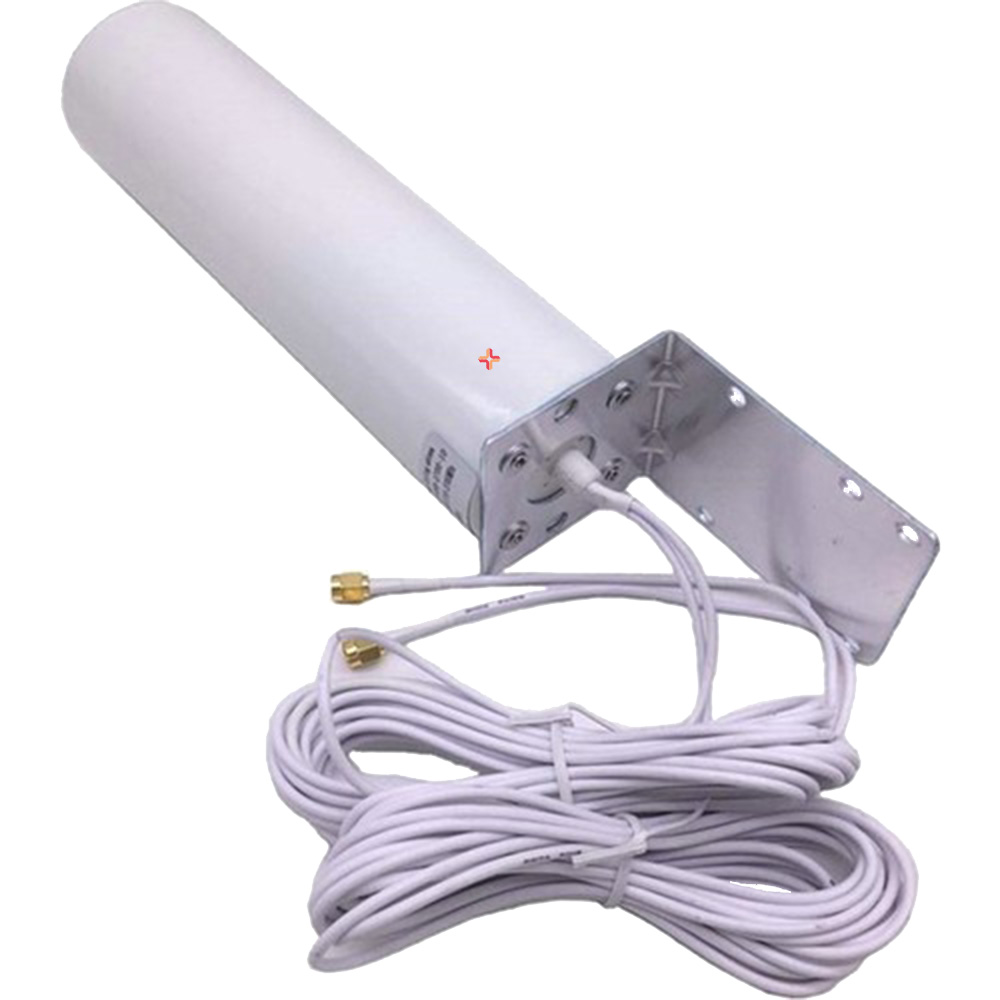

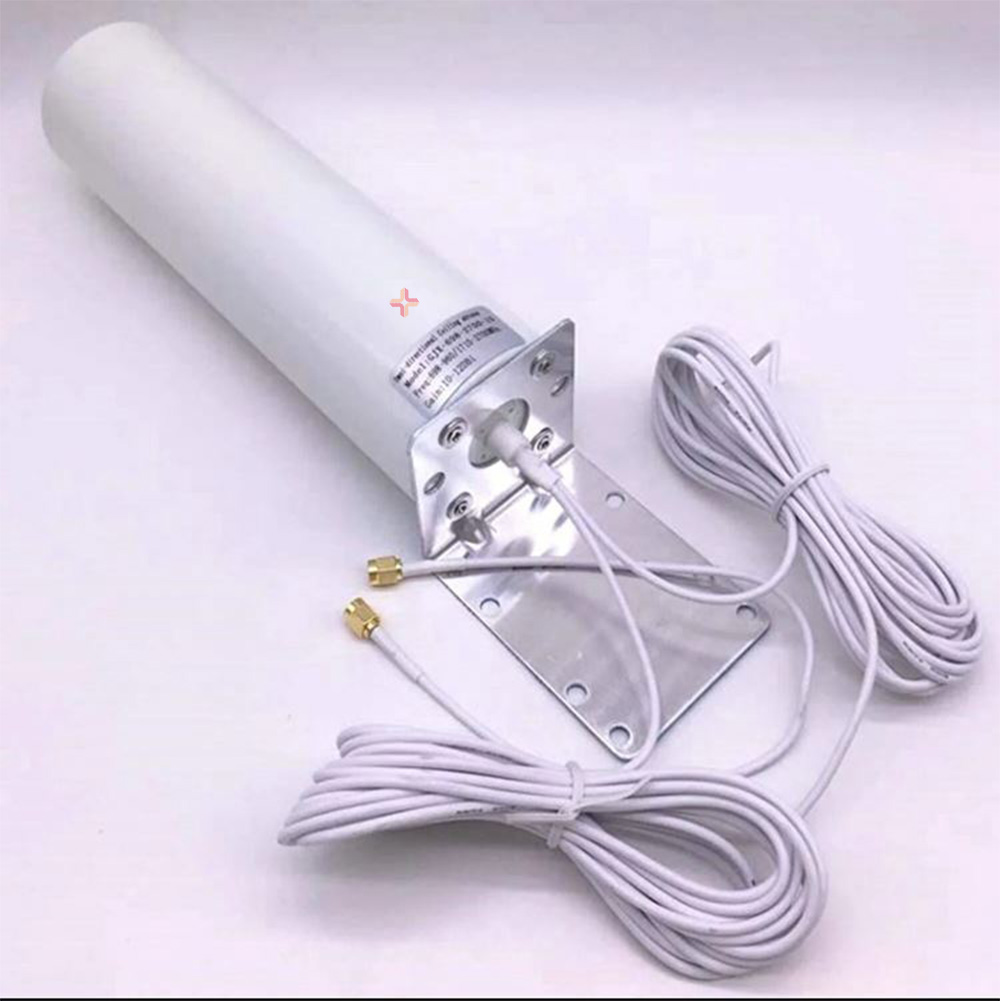

Xentino ANT105 is a high gain (10dBi) external media antenna for 3G/4G/LTE router modem devices.
Product Overview
Xentino ANT105 Main Features
SPECIFICATIONS
Frequency range |
698-960/1710-2700MHZ |
VSWR |
Below then 2,5 |
Gain |
10-12dBi |
Polarization |
Vertical |
Radiation |
Omni |
Max. Power Input |
10Watt |
Input Impedance |
50Ohm |
Connector Type |
SMA or RP SMA |

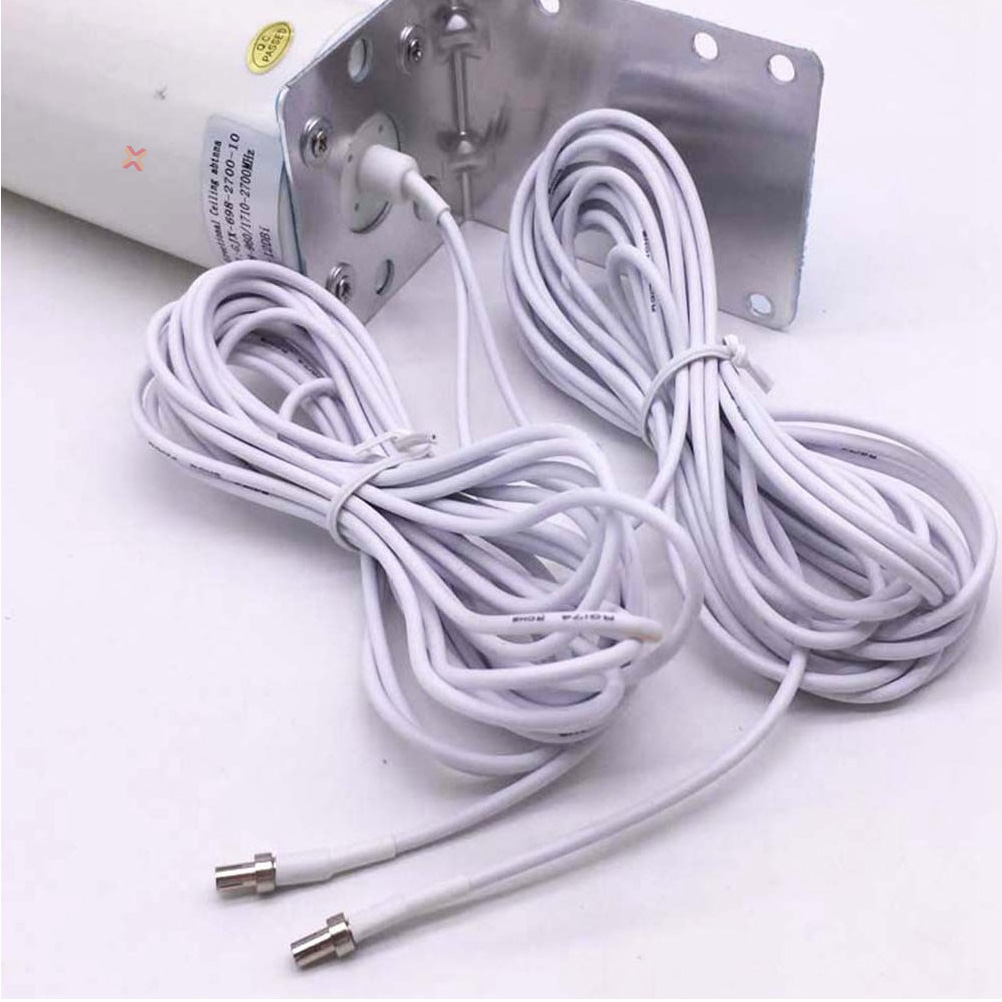

Cable Type |
RG174(best)%100 |
Cable Lenght |
5Metre |
Dimensions |
23 x 6,5 x 6,5CM |
Color |
White |
Material |
Metal + Plastic |
Installation Tips
To maximize performance, the antenna should be mounted vertically. The antenna should not be mounted on a metal ground.

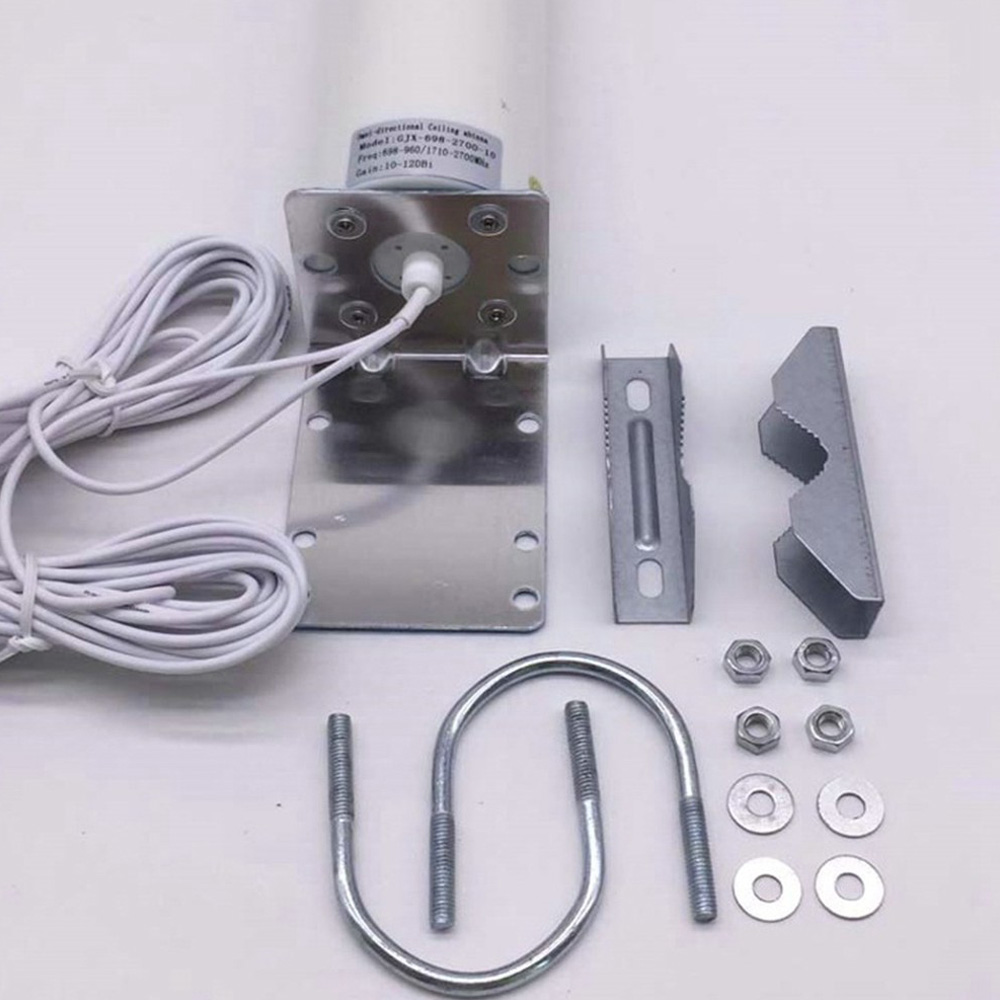

Packet Content
PCS |
Material |
2 |
Antenna clip handle |
2 |
U type metal hanging bracket with screw ends |
4 |
Screw Nut |
4 |
Seal |
1 |
Omni Antenna |
NOTE1 - The package content includes only the products mentioned above and other products that may be present in the pictures are not included.
NOTE2 - Light reflection and different displays may cause the color of the item in the picture slightly different from reality. The allowable measurement error is +/- 1-3cm.
