Ürün Bilgileri

802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect

ESSID stealth mode

Up to 50 simultaneous connections

Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

Whitelist, blacklist

Once scanned, a user will automatically enter your network without needing to input login information.

1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Port forward, traffic rules, custom rules

View all your Firewall statistics, rules, and rule counters

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Visual representation of your network, showing which devices are connected to which other devices

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

Supported >25 service providers, others can be configured manually

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover

Balance Internet traffic over multiple WAN connections

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

Possibility to mount remote file system via SSH protocol

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Port and tag-based VLAN separation

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Flexible access control of SSH, Web interface, CLI and Telnet

Let's encrypt support

Multiple clients and a server can run simultaneously, 27 encryption methods

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE tunnel, GRE tunnel over IPsec support

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

Method of building scalable IPsec VPNs

SSTP client instance support

ZeroTier VPN client support

WireGuard VPN client and server support

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Client, Server

TCP

Server, Client

TCP, RTU(RS232)

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

HTTP(S), MQTT, Azure MQTT

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Allows sending commands and receiving data from MODBUS Server through MQTT broker

Station, Outstation

TCP, RTU(RS232)

DLMS - standard protocol for utility meter data exchange

Client

TCP, RTU(RS232)

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

Firmware update from server, automatic notification

SSH (v1, v2)

Receive email message status alerts of various services

OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT Broker, MQTT publisher

SNMP (v1, v2, v3), SNMP Trap, Brute force protection

Management API over HTTP/HTTPS

Teltonika Remote Management System (RMS)

Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot

Allows monitoring of: Device name, HW version, Serial number, FW version, WAN IP. Allows actions from the cloud: FW update, Reboot

Allows monitoring of: Wan IP, Number of bytes send/received, Model, Manufacturer, Serial, Revision, FW version and collected data of industrial devices

Mediatek, 580 MHz, MIPS 24KEc

128 MB, DDR2

16 MB serial NOR flash

Update FW from file, check FW on server, configuration profiles, configuration backup

Update FW

Update FW/configuration for multiple devices at once

Update FW without losing current configuration

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

RutOS (OpenWrt based Linux OS)

Busybox shell, Lua, C, C++

SDK package with build environment provided

You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

The Package Manager is a service used to install additional software on the device

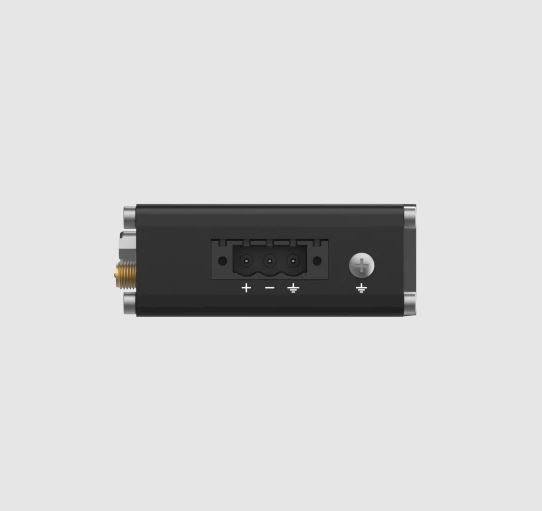

3-pos plugable terminal block

9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max

Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

Idle: < 1 W / Max: < 2 W

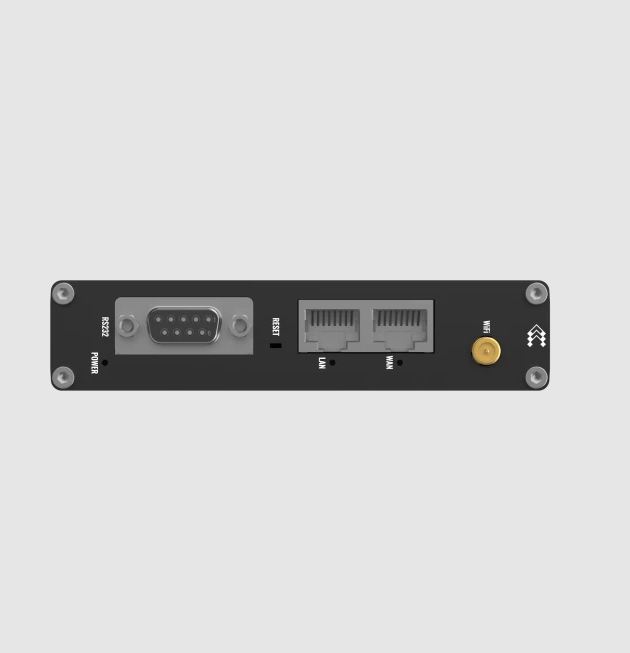

2 x RJ45 ports, 10/100 Mbps

1 x WAN type LED, 1 x LAN type LED, 1 x Power LED

1 x 3-pin power connector

1 x RP-SMA for Wi-Fi

1 x DB9 socket

Reboot/User default reset/Factory reset button

1 x Grounding screw

Aluminium housing

113.10 x 25 x 68.6 mm

149.2 g

Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)

-40 °C to 75 °C

10% to 90% non-condensing

IP30

CE, UKCA, FCC, IC, CB, WEEE, RoHS, REACH

EN 55032:2015 + A11:2020 + A1:2020

EN 55035:2017 + A11:2020

EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

EN 61000-4-2:2009

EN IEC 61000-4-3:2020

EN 61000-4-4:2012

EN 61000-4-5:2014 +A1:2017

EN 61000-4-6:2014

EN 300 328 V2.2.2

CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020

CB: IEC 62368-1:2018
