Ürün Bilgileri

Hardware Specifications

CPU

CPU Model

Intel Xeon D-1527

CPU Quantity

1

CPU Core

4

CPU Architecture

64-bit

CPU Frequency

2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine

Memory

System Memory

8 GB DDR4 ECC UDIMM

Memory Module Pre-installed

8 GB (8 GB x 1)

Total Memory Slots

4

Maximum Memory Capacity

64 GB (16 GB x 4)

Notes

• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• For more information on the recommended memory configurations, visit here.

Storage

Drive Bays

4

Maximum Drive Bays with Expansion Unit

16 (RX1217 x 1)

M.2 Drive Slots

2 (NVMe & SATA)

Compatible Drive Type* (See all supported drives)

• 3.5" SATA HDD
• 2.5" SATA HDD
• 2.5" SATA SSD
• M.2 2280 NVMe & SATA SSD

Hot Swappable Drive*

Notes

• The hot swappable drive feature is not supported by M.2 SSD slots.
• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

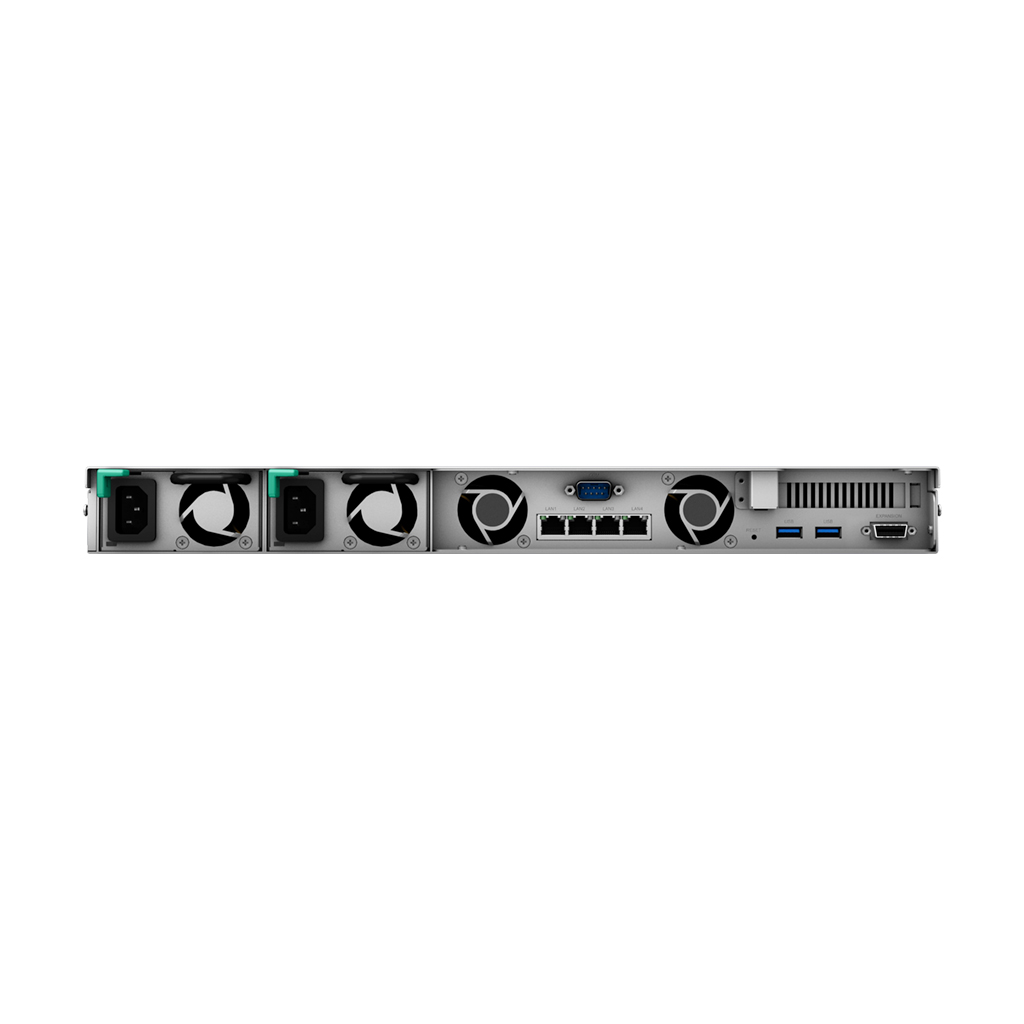

External Ports

RJ-45 1GbE LAN Port

4

USB 3.2 Gen 1 Port*

2

Expansion Port

1

Expansion Port Type

Infiniband

Notes

The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion

1 x Gen3 x8 slot (x8 link)

Appearance

Form Factor (RU)

1U

Size (Height x Width x Depth)

44 mm x 480 mm x 518.6 mm

Weight

8.16 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)

Notes

The rail kit is sold separately

Others

System Fan

40 mm x 40 mm x 2 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Power Recovery

Noise Level*

39.3 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

150 watts

Redundant Power Supply

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

68.68 watts (Access)
34.78 watts (HDD Hibernation)

British Thermal Unit

234.35 BTU/hr (Access)
118.67 BTU/hr (HDD Hibernation)

Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

5°C to 35°C (40°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

• FCC
• CE
• BSMI
• VCCI
• RCM
• EAC
• CCC
• KC

Warranty

5 Years

Notes

The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 2
• Quick Installation Guide X 1

Optional Accessories

• DDR4 ECC UDIMM: D4EC-2666-8G/D4EC-2666-16G
• Expansion Units: RX1217/RX1217RP
• Enterprise Series 3.5" SATA HDD: HAT5300 Series
• Enterprise Series 2.5" SATA SSD: SAT5200 Series
• 25GbE Network Interface Card: E25G30-F2
• 10GbE Network Interface Card: E10G21-F2/E10G30-T2/E10G18-T1
• Rail Kit Sliding: RKS-02
• Rail Kit Mounted: RKM114*

Notes

• Certain items may not be available in your location. Please contact your local distributors for more information.
• All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
