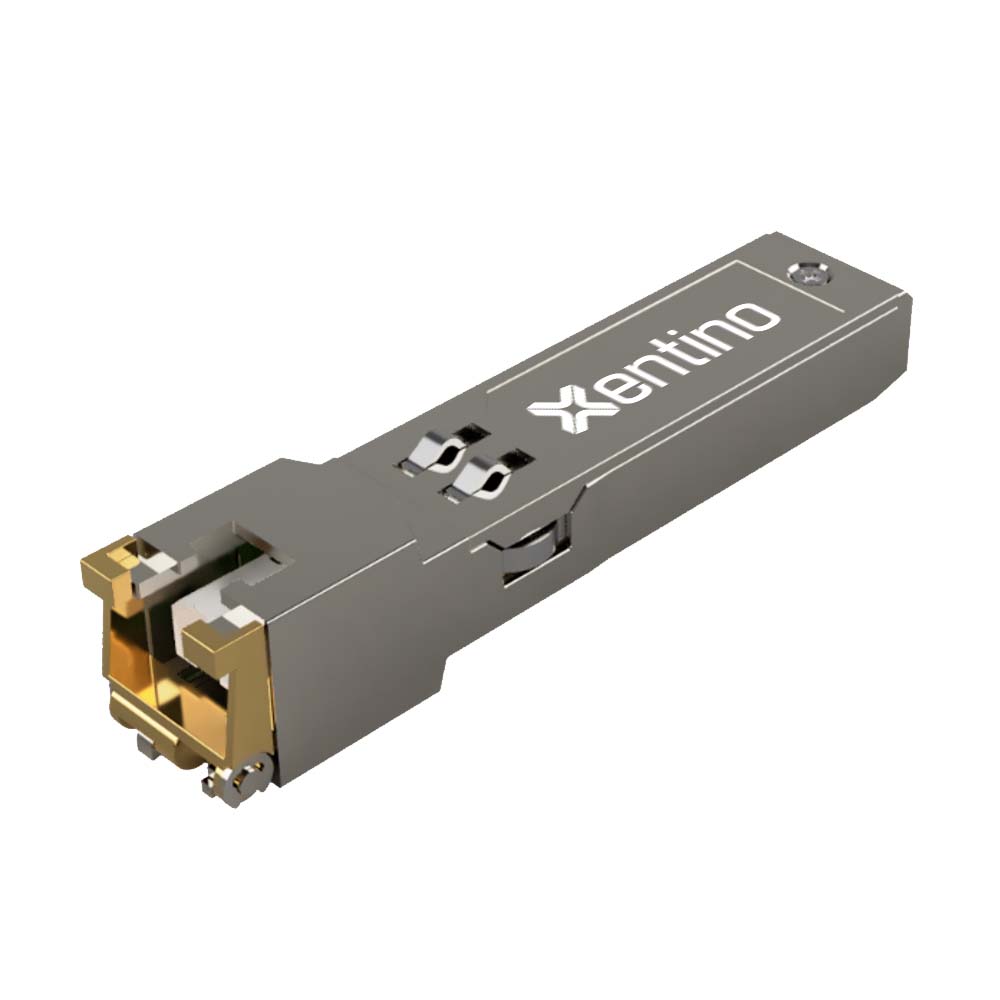

The new Xentino VS86P is a single pair, low power SFP (Small Form-factor Pluggable) Ethernet copper wire modem using the transmission friendly Pulse Amplitude Modulation (PAM) technology. The modem is optimized for a duplex connection speed in the range of 1,5Mbps to 18Mbps over a pair of copper wires up to 6200meters. The Xentino VS86P can be plugged into any Ethernet device with SFP ports that support 100BASE-FX and/or 1000BASE-X.

PRODUCT OVERVIEW

The new Xentino VS86P is a single pair, low power SFP (Small Form-factor Pluggable) Ethernet copper wire modem using the transmission friendly Pulse Amplitude Modulation (PAM) technology. The modem is optimized for a duplex connection speed in the range of 1,5Mbps to 18Mbps over a pair of copper wires up to 6200meters. The Xentino VS86P can be plugged into any Ethernet device with SFP ports that support 100BASE-FX and/or 1000BASE-X.

Pulse Amplitude Modulation means a much smaller frequency bandwidth than comparable modules with VDSL/ADSL technology. This technology influences the other systems less and the transmission on copper cables is more save and for harsh environments.

The configuration is possible by Web or Telnet access. The modem supports fixed and automatic transmission rate selection. The training or recovery time for the copper line connection (link synchronisation) in Fixed Rate Mode is very fast (2 to 10 seconds). In Auto Rate Mode, SFP modems automatically adjust the transmission rate to the optimum performance that line conditions can support. The copper line interface has 1500Volt RMS or 2250Volt DC isolation and its protection meets ITU-T Rec. K.20/K.21.

KEY FEATURES

• Industry Standard Small Form-Factor Pluggable (MSA compliant)
• Provide 1,5Mbps to 18Mbps up to 6200meter over Single Pair 18-26AWG Copper Line
• Industrial rated for –40°C to 85°C operation

Product Features

• Industrial & Intelligent PAM Modem for copper lines
• Single Pair of Copper Wire to 100BASE-FX/1000BASE-X
• Automatic 100BASE-FX/1000BASE-X detection
• Packet size up to 2048 bytes
• Supports Flow Control (FC)

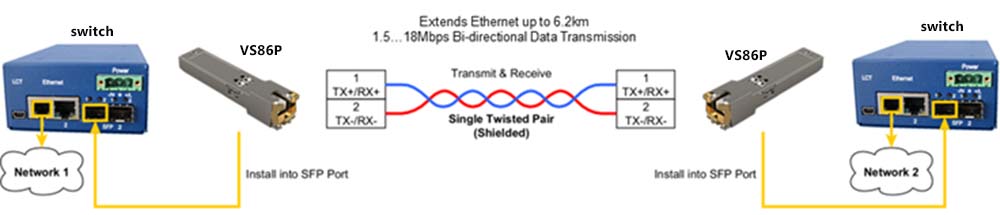

• Extends Ethernet up to 6200 Meters Over Single Pair
• Pulse Amplitude Modulation (PAM)
• 1.536Mbps to 18.048Mbps Bi-directional Data Transmission
• Automatic Speed Selection Mode (Auto Rate Mode)
• Fast Link Synchronisation, typical Time to Link is 3 seconds in Fixed Rate Mode
• Fast Link Recovery, typical Reconnection Time is 3 seconds if link interruption is shorter than 2 seconds
• HTTP Web GUI and Telnet CLI (Command Line Interface) Password Protection Supported
• Additionally configurable via the I2C Control/Status Fields
• Low Power (< 800mW)
• Digital Diagnostic Monitoring (DDM) Available
• Single +3.3V DC Power Supply
• Hot-pluggable SFP Modem
• Operating Temperature -40°C to +85°C
• Temperature Sensor & Voltage Measurement Included
• Fully Metallic Enclosure for Low EMI
• Compliant with SFP MSA Specification
• Software Upgradable

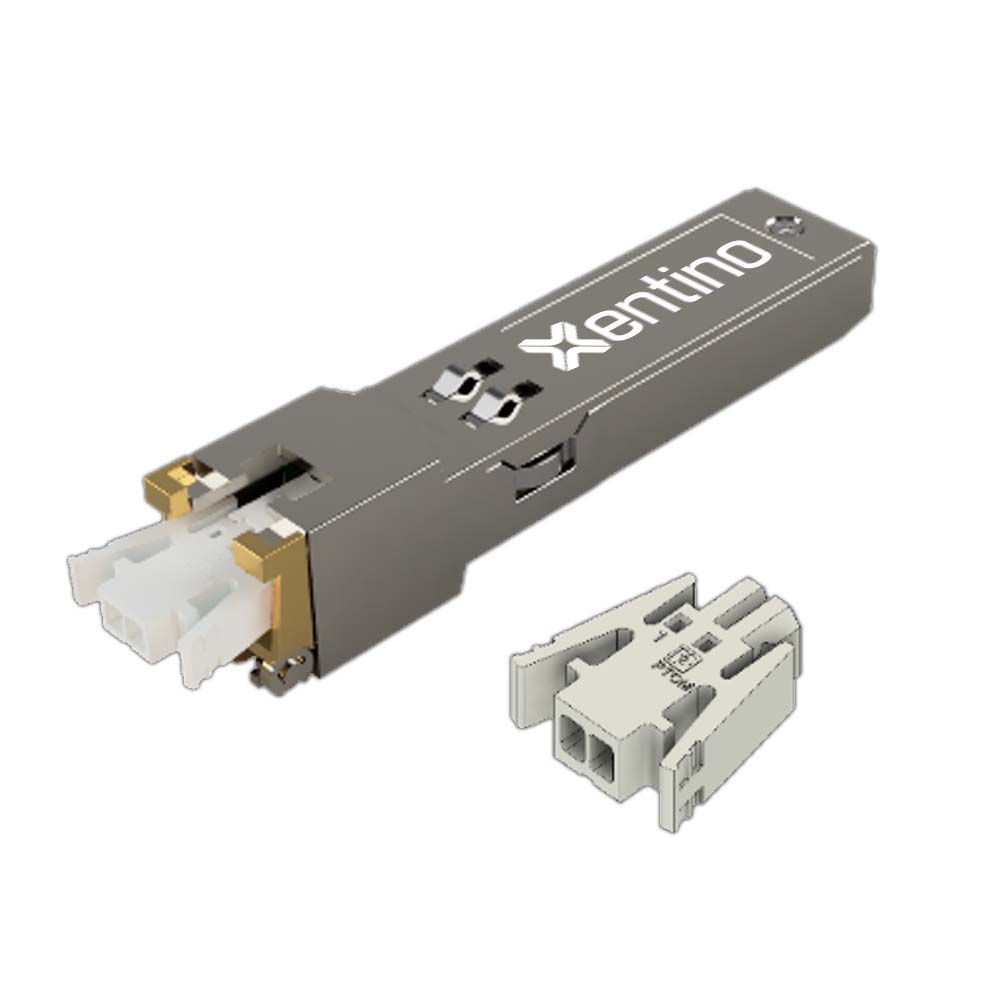

• Push-in & Crimp Connectors Included
• Connector with Snap-in Locking

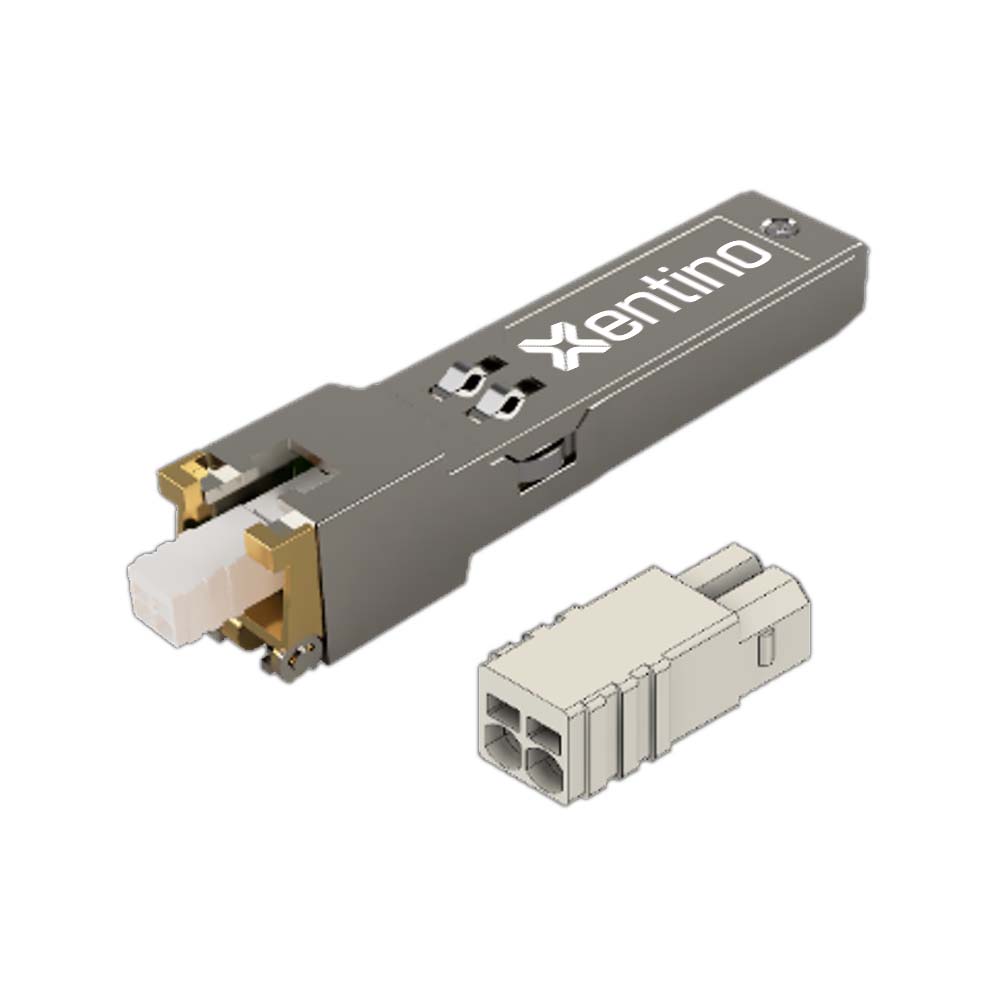

• Xentino VS86I Version with IEC 63171-6 Compliant Industrial Ethernet Connector

Applications

• Ethernet Extender (1.5Mbps to 18Mbps)
• Long Range Ethernet Extender (6200Meter)
• Industry 4.0 Applications
• Switch & Router Enhancement
• Single Pair Wire Ethernet Modem
